Deskripsi
Spesifikasi inverter :

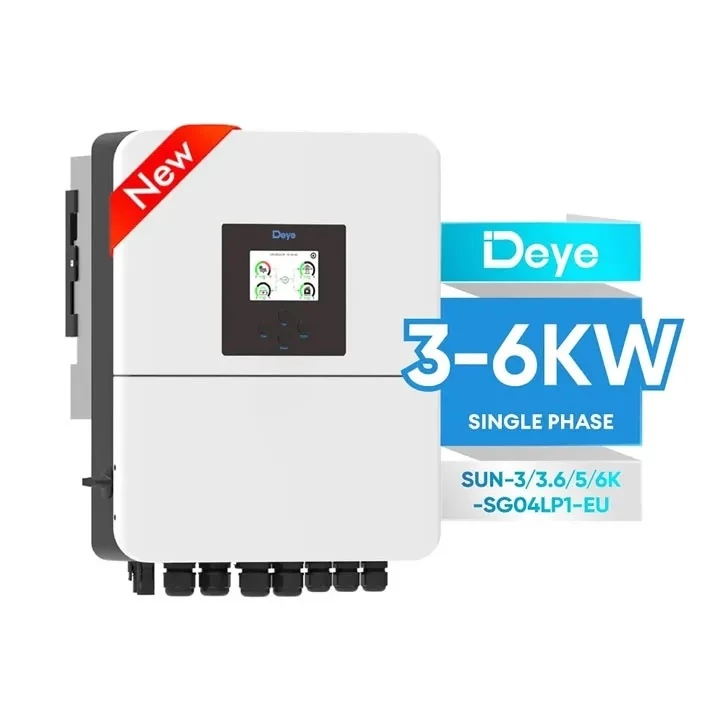

INVERTER HYBRID ON OFFGRID DEYE 5000W INCLUDE WIFI
Model
SUN-5K-SG04LP1-EU-SM2
BATTERY INPUT
Batttery type: Lead-Acid or Li-Ion
Battery voltage range: 40-60 V
Max. charging current: 120A
Max. discharging current: 120A
External temperature sensor: Yes
Charging curve: 3 Stages/Equalization
Charging strategy for Li-Ion battery: Self-adaptation to BMS
DC INPUT
– Max PV Input: 6500W
– Number of MPPT: 2
– Number of DC input: 1/1
– Rated PV input voltage: 370V (125V-500V)
– Start-up voltage: 125V
– MPPT Voltage Range: 150-425V
– Full Load DC Voltage Range: 300-425V
– Max DC Input Current: 13A/13A
– Max DC Input Short Circuit Current: 17A/17A
OUTPUT AC
– Rated Power and UPS Power: 5000W
– Max Output Power: 5500W
– Rated Output Current: 22.7A
– Max Output Current: 25A
– Max Continous AC Passthrough: 35A
– Peak Power (off grid): 2 time of rated power, 10 S
– Output Voltage & Freq: 50/60Hz, L/N/PE, 220V/230V
– THDi: <3%
– Power Factor: 0.8 leading…..0.8 lagging
EFFICIENCY
– Max Efficiency: 97.6%
GENERAL DATA
– Operating temp. range: -45 ~ 60C, >45C derating
– Cooling: Natural Convection
– Noise: < 30 dB
– Communication with BMS: RS485, CAN
– Weight: 24 kg
– Size: 330W x 580H x 232H
– Degree Protection: IP 65
– Installation style: Wall-mounted
Warranty:
5 Years ( Pabrik )
Baterailab juga menyediakan baterai pack yang support dan match dengan inverter growatt deye dll:
1. 4.8KWH 48V 100Ah 15S
Link etalase
2. 5.1KWH 51.2V 100Ah 16S
Link etalase
Versi Ekonomis :
1. 4.8KWH 48V 100Ah 15S
Link etalase
2. 5.1KWH 51.2V 100Ah 16S
Link etalase
Untuk diskon, dropshipper dan harga reseller silahkan langsung kotak admin
